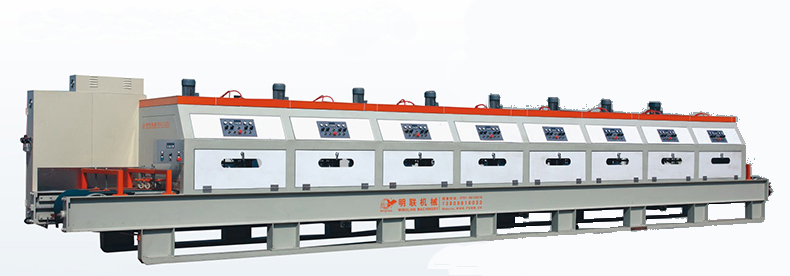

This machine is mainly used for the partial and complete polish of glazed tiles which burned through one, two,or three times. Each grinding unit applies an inedpendent swinging device, with high swinging frequency grinding effect and perfect grinding effect. It can effectively improve the processing speed and reduce processing costs. The whole machine includes three parts of rough polishing, fine polishing, and gloss polishing.

Models & main parameter of technology:

Model	YLB800-10	YLB800-12	YLB800-14	YLB800-16
Processing width(mm)	300-800	300-800	300-800	300-800
Processing thickness(mm)	6-20	6-20	6-20	6-20
Speed of conveyor belt(m/min)	2-8	2-8	2-8	2-8
Power of main drive motor（kw）	3	3	4	4
Grinding motor（kw）	1.5	1.5	1.5	1.5
Swing motor（kw）	1.5	1.5	1.5	1.5
Total weight（kg）	9000	10000	11000	12000
Total power(kw)	25.5	30	35.5	41
Outlook size(mm)	9600x1500x2250	10800x1500x2250	12000x1500x2250	13200x1500x2250
Water consumption(L/min)	300	360	420	480
Air consumption(L/min)	30	35	40	45
